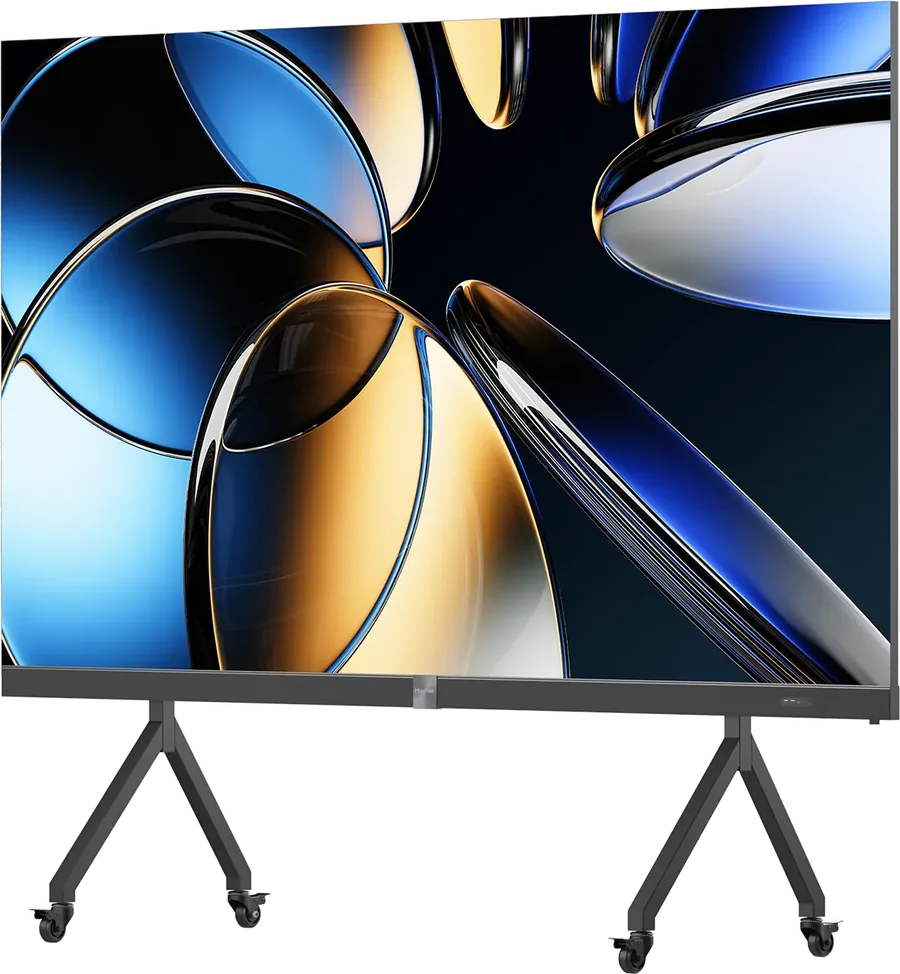

Hisense HAIO136GE 136 inch all-in-one LED display on a mobile stand

LED video walls

LED walls for corporate offices

Kasturi specifies Hisense all-in-one and fine-pitch cabinet walls for boardrooms and lobbies, then installs the camera, audio and control around them. The survey is free in Peninsular Malaysia.

Size the wall to the closest seat, not the diagonal.

Book a free site survey See the range

WhatsApp +6017 303 9377 Call +603 7960 1808

  • Since 1998
  • 2,500+ rooms deployed
  • Own engineers, no subcontractors
1998
Founded
2,500+
Rooms deployed
15+
Technology brands
1
Team, from survey to support

Start here

Match the wall to the closest seat

The closest regular viewer sets the pitch. Hisense all-in-one walls on the current index are 108 inch at 1.25 mm, 136 inch at 1.5625 mm and 163 inch at 1.875 mm, each 1920 x 1080. A seat inside about two metres, with spreadsheets on screen, wants the finer end or an XIH-S cabinet. A lobby glance from four metres does not.

  1. Boardroom, fixed 16:9

    HAIO108, HAIO136 or HAIO163. Built-in controller, front service, 3,840 Hz typical refresh.

    See the range

  2. Closer than the all-in-one allows

    XIH-S flip-chip COB cabinets from 0.78 mm to 1.56 mm. The wall is built to the opening.

    See cabinet pitches

  3. Lobby or town hall

    Brightness and structure first. Window light and a long wall are survey items, not a brochure size.

    Book a free site survey

Decide before the quote

Nine checks, then the type

Answer these in order. The diagonal is the last choice, not the first.

  1. Closest seat

    Measure the nearest chair that will regularly read the wall. A front row inside about two metres, with small text, wants 1.25 mm or finer. A lobby glance from about four metres can use a coarser pitch.

  2. What is on screen

    Spreadsheets and shared documents need the finer end. Slides and video can sit on 1.56 mm or 1.87 mm if the front row is not close.

  3. The opening

    An all-in-one wall is a fixed 16:9 at 108, 136 or 163 inch, all 1920 x 1080. If the wall is wider, taller, or not 16:9, it is a cabinet wall, not a larger all-in-one.

  4. Room light

    These all-in-one sets default to 600 nits and can be raised. A window opposite the wall is a survey item. It can force a brighter set or a different position. It does not pick the inch size.

  5. How it is serviced

    The HAIO sets and the XIH-S cabinets on the current index are front service. If the wall cannot be reached from the room, say so before the size is locked.

  6. The room camera

    A camera facing the wall is a reason to stay at the finer pitch, so a remote viewer does not see a grid. Specify the camera with the display, not after it.

  7. Sound and control

    The wall does not replace the microphones or the one-button start. A boardroom still needs ceiling or table mics, and a control panel anyone can use.

  8. Then the type

    • 108 inch at 1.25 mm, for the closer boardroom.
    • 136 inch at 1.5625 mm, for a medium room.
    • 163 inch at 1.875 mm, when the front row is further back.
    See the range

  9. When it is a cabinet

    XIH-S cabinets from 0.78 mm to 1.56 mm when the opening is not 16:9, or the closest seat is nearer than the all-in-one pitch allows. The survey confirms the build.

    See cabinet pitches

How a wall is specified

Pitch before diagonal

The diagonal is the last choice, not the first. Four things are settled before it.

The wall is one part of the room. Camera, microphones and control are specified with it, not after it.

Book a free site survey

  1. Closest seat

    Walk the room. The seat that will read text sets the pitch. A photo stop at the wall does not.

  2. Light on the face

    Hisense defaults sit at 500 to 600 nits. A glazed lobby can need more. Peak nits are not the working setting.

  3. All-in-one or cabinets

    108, 136 and 163 inch cover a standard board wall. Any other ratio uses 600 x 337.5 mm cabinets.

  4. The rest of the room

    A wall at 3,840 Hz still needs microphones, a camera and a one button start. That is the same handover test as every Kasturi room.

Drawn to scaleFrame sizes from Hisense. Mounting height is set at the survey.
Hisense all-in-one frames to scale beside a 1.7 metre person: 108 inch is 2404 by 1437 mm, 136 inch is 3004 by 1774.5 mm, 163 inch is 3604 by 2112 mm. 1.7 M 108 IN · 1.25 MM 136 IN · 1.5625 MM 163 IN · 1.875 MM PERSON 2404 X 1437 MM · 76 KG 3004 X 1774.5 MM · 110 KG 3604 X 2112 MM · 162 KG

Hisense all-in-one

Three sizes, one resolution

Figures below are from the current Hisense commercial pages. Kasturi is not an authorised Hisense partner. Samsung is also supplied and installed, and that path is quoted after the same survey.

Compare cabinet walls See meeting room AV packages

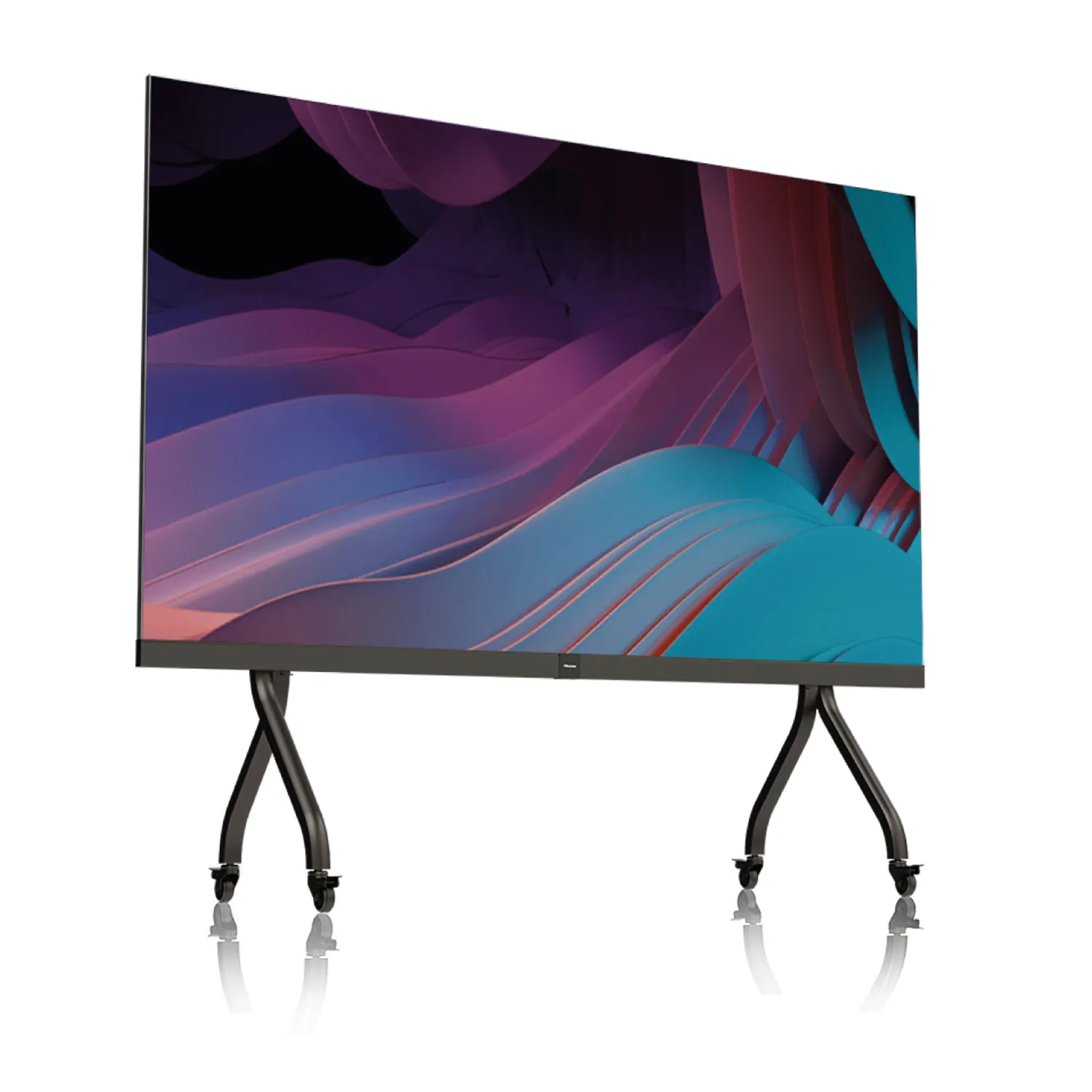

Hisense HAIO108DE 108 inch all-in-one LED display

108 inch · 1.25 mm flip-chip COB

HAIO108DE

Resolution
1920 x 1080
Frame
2404 x 1437 x 31.5 mm, 76 kg
Brightness
Default 600 nits, peak 1,000 / 1,200
Contrast
25,000:1 at 10 lux
Service
Front
Hisense sheet

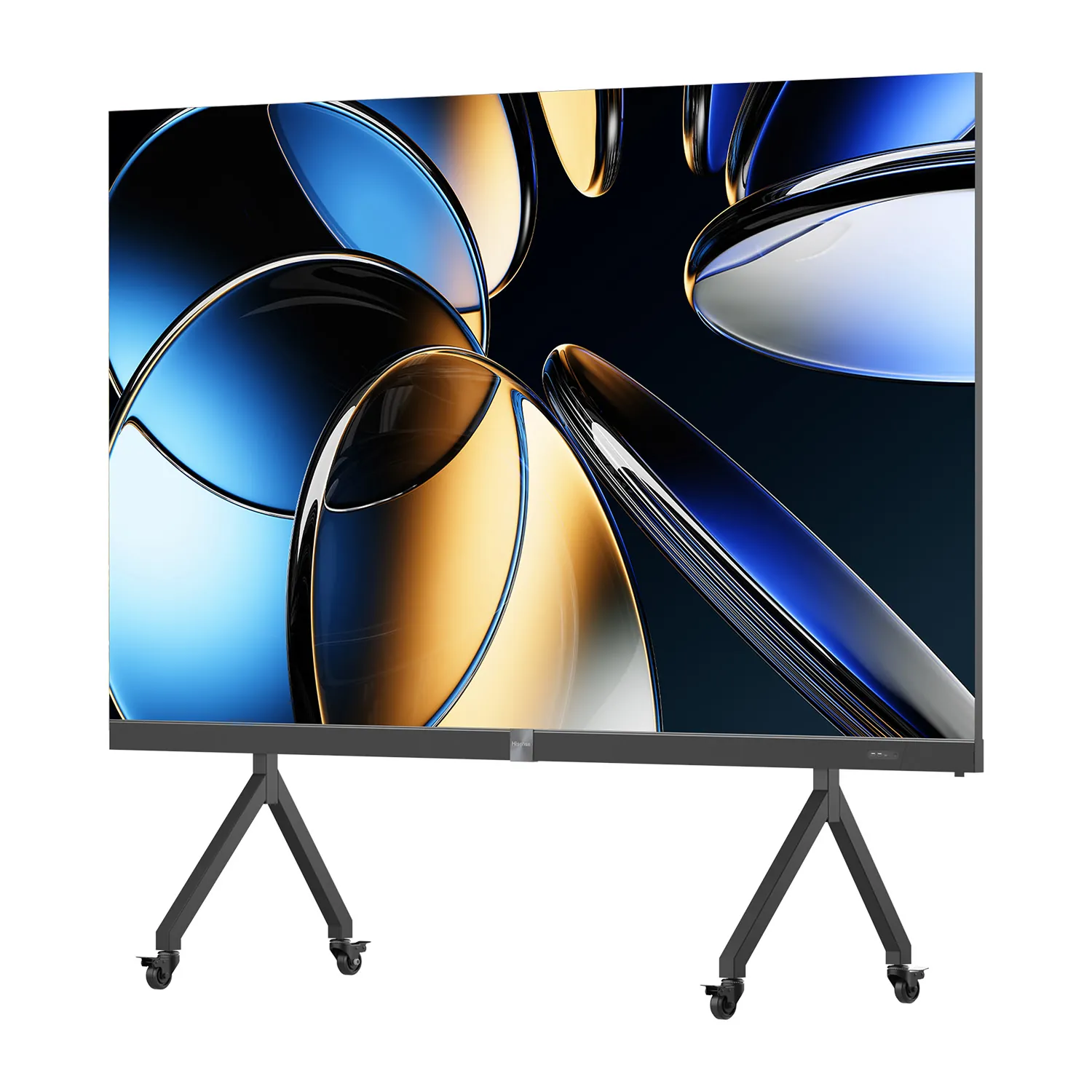

Hisense HAIO136GE 136 inch all-in-one LED display

136 inch · 1.5625 mm

HAIO136GE

Resolution
1920 x 1080
Frame
3004 x 1774.5 x 32.3 mm, 110 kg
Brightness
Default 600 nits, adjustable to 1,000
Contrast
52,000:1 at 10 lux
System
Android 14, 10 W x 6 speakers
Hisense sheet

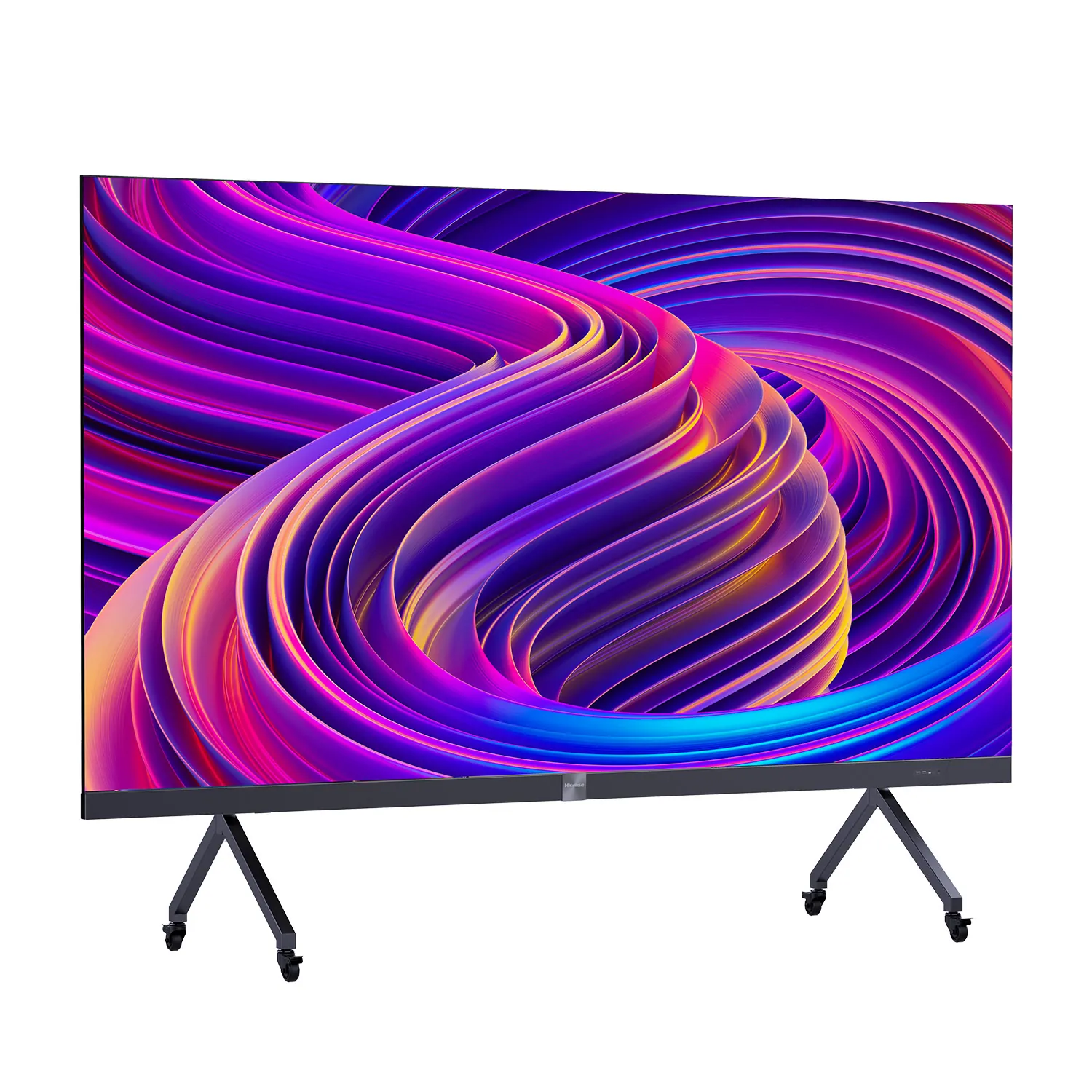

Hisense HAIO163GE 163 inch all-in-one LED display

163 inch · 1.875 mm

HAIO163GE

Resolution
1920 x 1080
Frame
3604 x 2112 x 32.3 mm, 162 kg. Check the slab before you hang it.
Brightness
Default 600 nits, adjustable 100 to 800
Contrast
30,000:1 at 10 lux
System
Android 14
Hisense sheet

No package price on this page. Pitch, size, structure, power and cabling are quoted after the survey. Installation is not included in a hardware figure.

When 16:9 is the wrong shape

Cabinets for a custom wall

XIH-S is flip-chip COB in four pitches: 0.78, 0.9375, 1.25 and 1.56 mm. Each cabinet is 600 x 337.5 x 34.3 mm and 4.04 kg, die-cast aluminium, front access. Typical brightness is 600 nits.

Ask about a custom wall XIH-S series sheet

XIH-S pitches, customisable to

  • 0.78 mm1,000 nits
  • 0.9375 mm1,000 nits
  • 1.25 mm1,000 nits
  • 1.56 mm800 nits

Brighter cabinets

XIHFE is the brighter indoor COB line on the same index. XIH009FE and XIH012FE are listed at 800 nits, at 0.9375 mm and 1.25 mm. XIH015FE is 1.56 mm at 600 nits. Contrast on both lines is 10,000:1 at 10 lux in Hisense's test environment.

What we leave off this page

Outdoor RO, HOA and rental RNM series sit on the Hisense index. They are not specified here. A town hall backdrop is quoted after a survey, not from a rental catalogue.

Quality, not a badge

Surface, light and camera

COB against GOB

HAIO108DE and HAIO136DE are flip-chip COB. Hisense lists a black ratio of 96.16 percent on the 108 and 98.6 percent on the 136DE, with contrast of 25,000:1 and 40,000:1 at 10 lux. HAIO163DE is 3 in one SMD with Glue On Board, 500 nits and 5,000:1. The larger diagonal is not the finer picture.

Touch, if the wall is the board

HAIO108DE-T adds an infrared touch frame to the 108 inch, 1.25 mm wall. Hisense lists 20 touch points on Android and Windows, and a single point on Mac. The framed screen is 2439 x 1474 x 53 mm and 81 kg. It is a whiteboard path, not a second pitch.

Refresh and the call

Typical refresh is 3,840 Hz across the all-in-one sets named above. That is the figure that matters for a room camera. Speakers are built in, 10 W x 6 on the 136 and 163 sets. A boardroom still wants ceiling or table microphones. Audio is specified on the audio page, and the call path on Teams rooms.

Weight and power

Screen weight runs from 76 kg on HAIO108DE to 110 kg on the 136 inch sets and 162 kg on the 163 inch sets. HAIO108DE averages at or under 400 W at 600 nits. HAIO136GE averages at or under 750 W at 600 nits. Plasterboard and a shared circuit are survey items.

From survey to handover

One team, one button

Survey

Closest seat, lux on the wall, structure and power. Free in Peninsular Malaysia.

Proposal

Equipment on one line, installation and cabling on another.

Install

Kasturi engineers install. A boardroom or training hall takes 3 to 5 days. Wiring can be after hours.

Handover

A real call is run. Anyone can start it without calling IT. Support replies within 4 business hours.

Read before the survey

The long explanation

Read these before the site survey. They cover how pitch, viewing distance and room light decide the wall, and what the rest of the room needs.

Book a free site survey All guides
Rendered auditorium with a cinema size display

LED wall screens for meeting rooms

Pitch, viewing distance and room light, with SMD, GOB and MIP compared.
Boardroom with a long table, leather chairs and a wall display

The wall is one part of the room

Camera, microphones and control are specified with the display, not after it.
Meeting room with a long table facing a wall display

The video conferencing room guide

Room types, an equipment checklist and typical costs, from huddle rooms to boardrooms.
